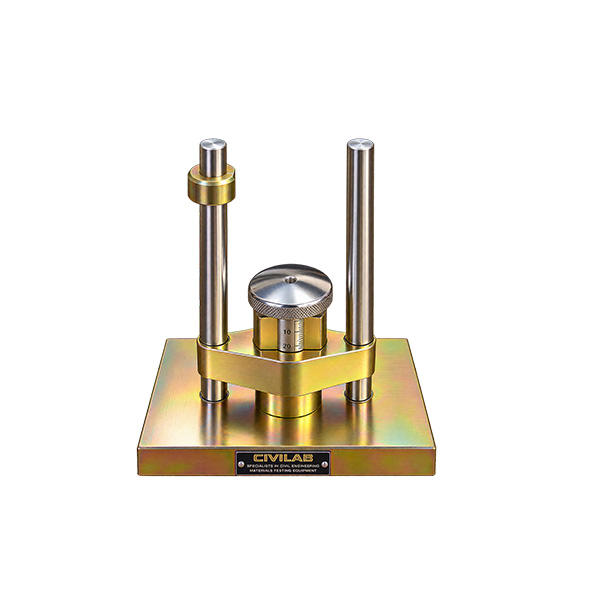

Filler Compaction Apparatus

Civilab manufactured in Australia.
This  apparatus is used to set out the method for the determination of voids in dry compacted filler for asphalt.

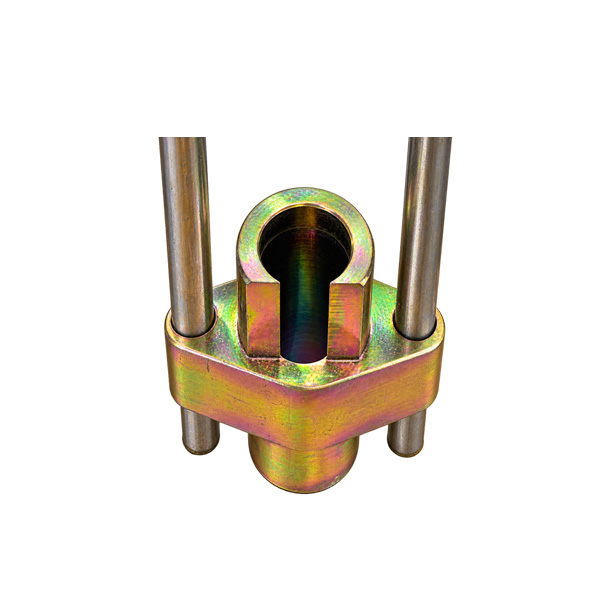

Consists of a cylinder of 25 +/- 1mm I.D and  has an overall internal depth of 65mm.
Supplied with a plunger of such diameter to allow it to slide freely in the cylinder.
The weight of the plunger is 350 +/-2grm.
Total weight of unit is approx 3.5kg
