- Compact Design minimising footprint
- Built-in logger allowing high speed sensor data conversion (24 bit, up to 5000 samples/s)
- Multiple Units can be controlled from single PC via a LAN or Ethernet/USB hub
- Standalone Use via Touchscreen display with data export to PC or a USB Drive
- Real-Time Data Visualization: Features built-in live data tables and graphs for immediate analysis.
- Built-in auto protection for mechanical limits & sensor limits

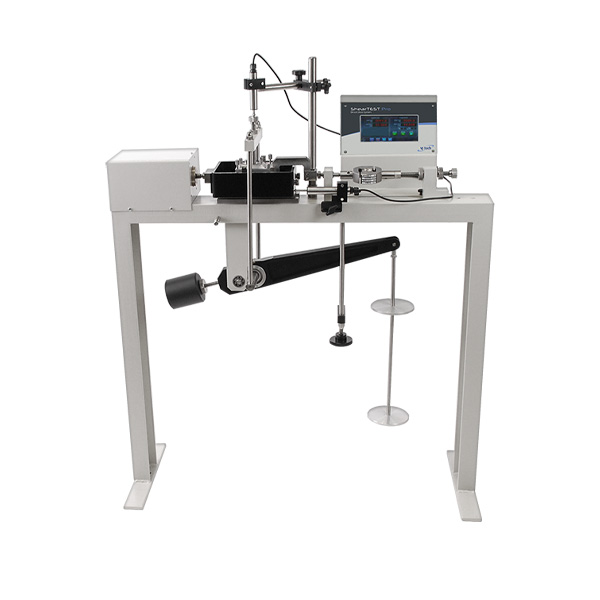

Direct and Residual Shear System (ShearTEST Pro)
VJ Tech’s ShearTEST Pro is designed for shearing a sample under an applied normal load along a predetermined plane until failure occurs. The floor-standing frame has a leaver loading arm attached, with a hanger to accommodate a maximum load of 100 kg, translating to up to 10kN of vertical load on the specimen.
The ShearTEST Pro system comes with a shear box water carriage, which houses the swan-neck Shear box assembly. With a built-in datalogger, the system can log up to 5 analogue sensor inputs and be connected to a PC for data acquisition and data processing via our Clisp Studio software.
SKU: VJ2760A-P
Category: Shear Testing
Maximum Vertical Load
10 kN
Maximum Horizontal Load
5 kN
Maximum Horizontal Travel
20 mm
Speed Range (Standard)
0.00001 – 10.00000 mm/min
Fast Speed Forward
10.0000 mm/min
Fast Speed Reverse
10.0000 mm/min
Power
220 – 240V 50/60 Hz 1ph
Weight
54 kg
Dimensions (W x D x H)
940 x 420 x 1140 mm
AS1289.6.6
