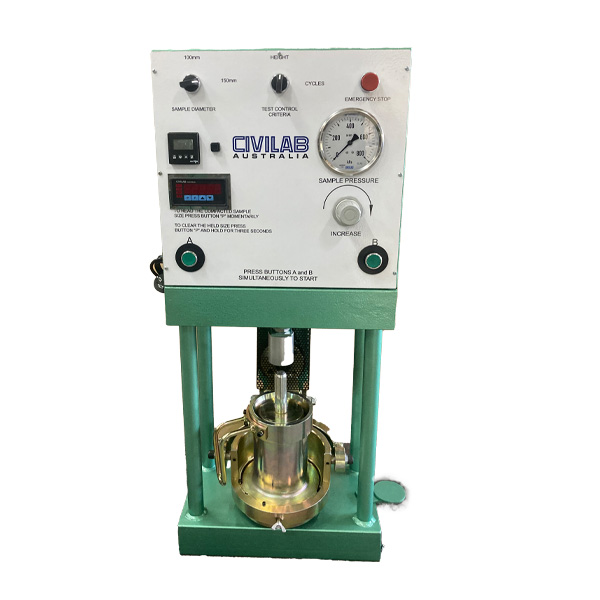

Civilab Gyratory Compactor

Civilab Manufactured in Australia
A gyratory compactor is a specialised laboratory device designed to simulate the compaction of asphalt mixtures under controlled conditions.
It combines a static vertical load with a gyratory (rotational) movement to compact a specimen within a cylindrical mould.
This process generates a conical shape in the specimen that closely mimics the effect of field compaction,
allowing engineers to evaluate parameters like density, void content, and overall mix performance before the material is laid down in pavement construction.
Specimen height range
65-145 mm Rotation angle
3° for 150 mm, 2° for 100 mm Vertical load
0~1000 kPa ± 3% adjustable.
The factory setting is 240 kPa Rotation speed
60 ± 5 gyration Number of gyratory
0-999 Mould
100 mm, 150 mm Power
220-240 V, 50/60 HZ, 200 Watts Outside size (mm)
48 x 420 x 1050 (L x W x H) Mould weight
7.5 kg Weight
150 kg
REQUIRED OPTIONS:
CL40710 COMP MOULD
CL40720 WEAR PLATE X2
CL40722 BASE PLATE
