To smooth and polish 100mm dia & 150mm dia samples
Specimen options – 3 x 100mm or 2 x 150mm
Disc Roation 1800 r.p.m.
Feed Control 2.5mm to 0.2mm
Adjustable electric timer
Automatic water supply
Diamond polishing disc
Dimension 600mm L x 850mm W 1350mm H
Weight 290kg
Power 415Vac, 3 phase

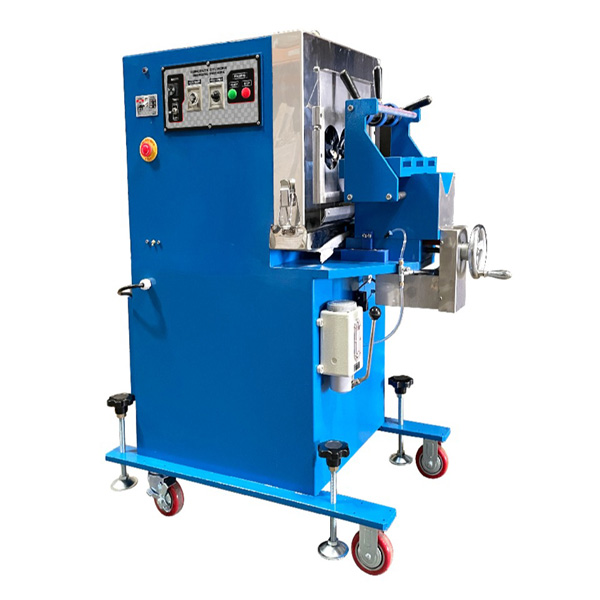

Concrete Cylinder Grinding Machine
Concrete Cylinder Grinding Machine is used to smooth and polish concrete cylinders (Ø100mm & Ø150mm) that are commonly prepared for compressive strength testing. These cylinders are typically molded from concrete mixes and are then tested to assess the material’s strength. The grinding machine ensures that the surface of the concrete cylinders is flat and smooth, which is essential for accurate and consistent test results.
SKU: CL19060
Categories: NL Scientific Equipment, Concrete Testing
AS1012.9 2014
